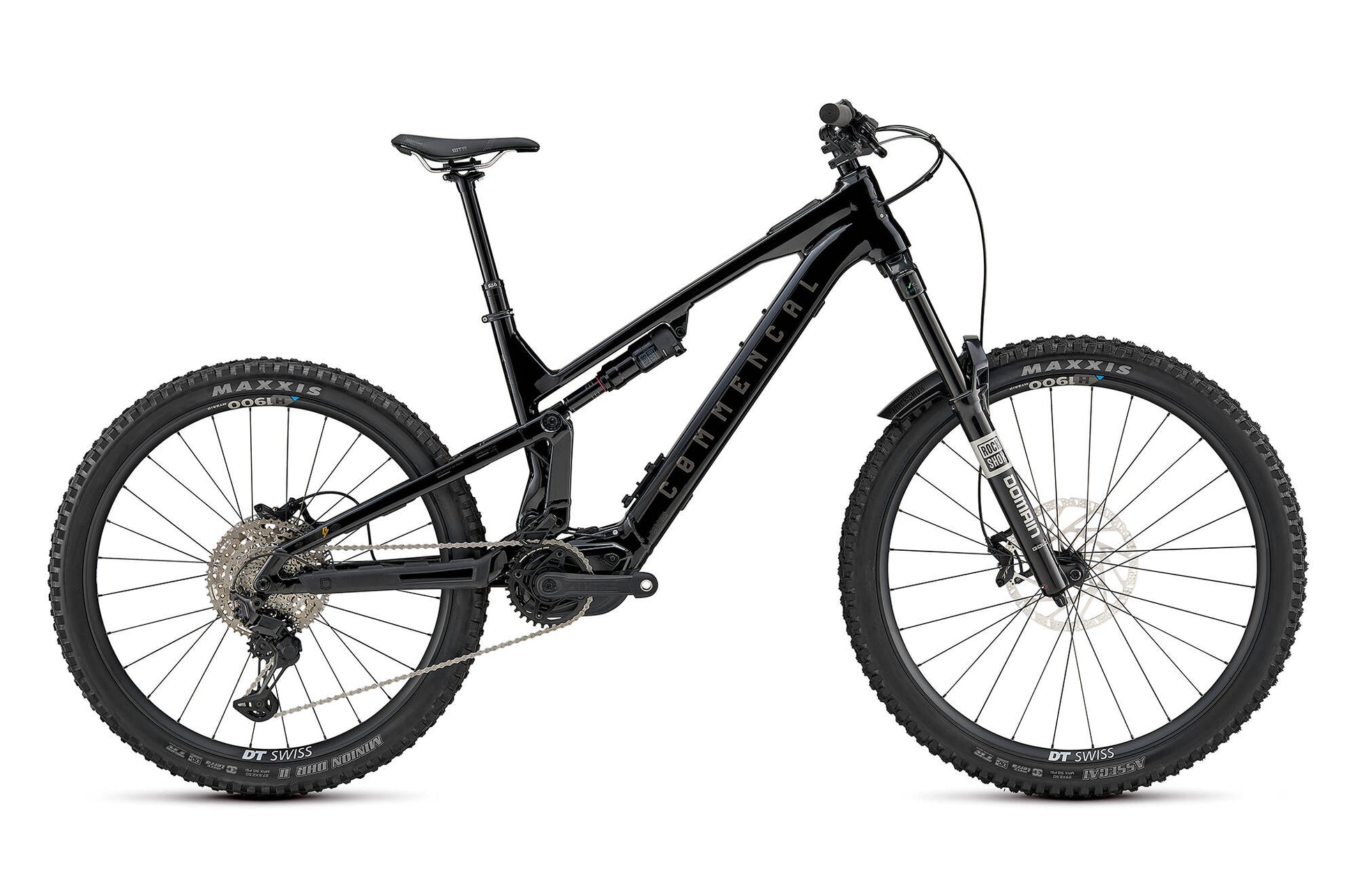

COMMENCAL META POWER SX AVINOX RIDE PURE BLACK 2027
COMMENCAL META POWER SX AVINOX RIDE PURE BLACK 2027
Couldn't load pickup availability
The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
The META POWER SX AVINOX RIDE offers a high-performance and accessible configuration to fully exploit the frame and its 160 mm of travel.
• The ROCKSHOX Domain Gold R (170 mm) paired with the ROCKSHOX Deluxe Select shock absorber offers comfort, support, and control to tackle aggressive rides. The package guarantees healthy and efficient behavior on all terrains.
• Braking is ensured by the NEW TRP DHR EVO COMP 4-piston with TRP 220/203 mm discs, guaranteeing power and consistency, even on long descents.
• DT SWISS H1900 wheels mounted on DT SWISS 370 hubs and Hybrid 1 spokes ensure robustness and reliability. They are perfectly suited to e-MTB riding.
• The SHIMANO XT Linkglide 11-speed groupset, combined with the E13 Helix Core 155 mm crankset, is durable and offers smooth gear changes. It's one of the most robust drivetrains on the market. It's perfect for ebike riding.
SPECIFICATIONS
-
FRAME
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
-
MOTOR
AVINOX M2S
150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation
-
BATTERY
AVINOX
600 Wh on S, 800 Wh on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger
-
DISPLAY
AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
Switch: AVINOX BC100, Wireless controller.
-
SHOCK
ROCKSHOX Super Deluxe Select
230 x 60 mm, Debonair +, 2-postion (open/firm) lever, Rebound
-
FORK
ROCKSHOX Domain Gold R 170 mm
29", Motion Control damper, LSR, Boost (15 x 110 mm), 44 mm offset
-
HEADSET
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings
-
STEM
RIDE ALPHA 40
40 mm extension, 31.8 mm
-
HANDLEBAR
RIDE ALPHA R27 760 on S - RIDE ALPHA R35 780 on M / L - RIDE ALPHA R35 800 on XL
31.8 mm, 760 mm width, 27 mm rise, Alloy 7050 on S - 31.8 mm, 780 mm - width, 35 mm rise, Alloy 7050 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 7050 on XL
-
GRIPS
RIDE ALPHA Mushroom
Soft compound, single clamp, black
-
BRAKES
TRP DHR EVO COMP, 4 pistons
Rotors: TRP 6-bolt, 220 mm/203 mm
-
SHIFTERS
SHIMANO XT LinkGlide
11s
-
CHAIN GUIDE
RIDE ALPHA
32-34t
-
REAR DERAILLEUR
SHIMANO XT LinkGlide
11s
-
CRANKSET
E13 HELIX CORE, 155 mm crank arms
Chainring : SHIMANO SM-CRE80, 34t
-
CHAIN
SHIMANO Cues LinkGlide
CN-LG500, 11s
-
CASSETTE
SHIMANO Cues LinkGlide
CS-LG400, 11s, 11-50t
-
RIMS
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
-
HUBS
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
-
SPOKES/NIPPLES
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
-
TYRES
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27.5x2.50WT, 3C MaxxTerra, EXO+, TR- Front: 29x2.50WT, 3C MaxxTerra, EXO+, TR
-
SEAT POST
KS 900i
150 mm on S - 170 mm on M - 190 mm on L/XL
-
SADDLE
WTB Solano Crmo
142 x 240 mm, Medium
-
WEIGHT
25 kg / 55,11 lbs
Minimum weight for M size, without pedals. Weight may differ slightly due to manufacturing tolerances.
-
PEDALS INCLUDED
CRANKBROTHERS Stamp 1
-
COLOUR
PURE BLACK
Shiny Finish
-
ACCESSORIES
RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, fork fender, FIDLOCK base.
